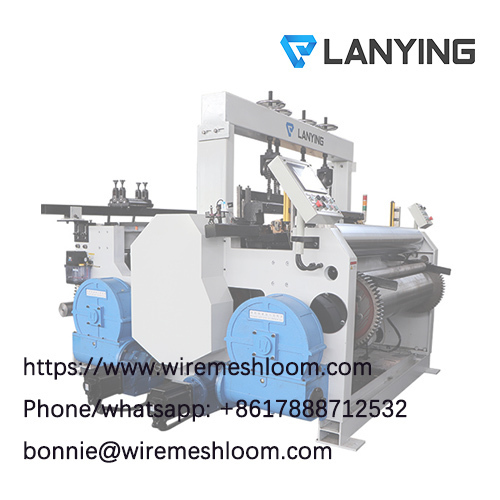

SG180 series large CNC metal wire mesh weaving machine is suitable for weaving heavier metal mesh fabric. It adopts flexible rapier linear weft insertion. There are two kinds of beating up forms: single beat /pick and double beat/pick and two kinds of shedding opening structures which can be selected: tappet hanging/harness heald and servo dobby. It is with the character: Mesh winding and let-off automatic numerical control and automatic adjust mesh tension. It can weave metal wire mesh ,like stainless steel, iron, copper,  aluminum,alloy, polyester and other non metal wire mesh .

Main technical parameters:

Standard width: 1300 mm

Wire diameter range:  0.1-1.2mm,

Weaving density: plain weave square hole 6-60 mesh; twill weave ≤180 mesh

Speed: 40-55 rpm (the actual speed depends on the  weaving width and detailed specifications), Stepless speed regulation of frequency converter.

Heald frame and form: cam opening mechanism hanging heald frame (three kinds of structures are optional - Tappet hanging/harness heald, arch heald, servo dobby and 2-8 pieces of aluminum alloy heald frame or steel heald frame)

Beating up forms: single-beat/pick

CNC: Precise and fast one way linear weft leading is controlled by high performance servo motor under PLC control. Adopt numerical control let -off (feeding warp wire ) by AC servo motor, real time display tensions' data also automatic adjustment. AC servo motor CNC coiling.

Basic tension: 80000n/m

Weight: 10000kg

Outline size: 3500mmX3860mmX2160mm

Please contact us to know more details and watch product video !
