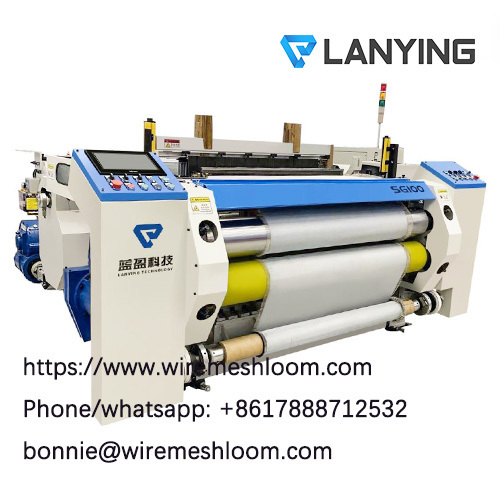

SG100 series light-duty CNC wire mesh weaving machine is suitable for weaving high quality fine mesh.

Model No.: SG100/130-1JD

Standard width: 1300 mm

Wire diameter range: 0.03-0.3mm

Wire materials:  stainless steel, iron, copper, brass, phosphor copper, aluminum, silver, platinum and so on.

Weaving density:

plain weave square hole 40-400 mesh;

twill weave ≤600 mesh;

dutch weave 3600 mesh (weft direction)

Speed: 100 (120 optional) RPM

(the actual speed depends on the weaving width and detailed specifications, stepless speed regulation of frequency converter)

Shedding form: Three optional type available -Tappet arch heald, rotating electronic dobby and servo dobby

Heald frame:  2-20 pieces of aluminum alloy heald frame

Basic tension: 15000N/M

Weight: 4200kg

Outside dimension: 2750mmX3300mmX1500mm

Please contact us to know more details and watch product video !
